Kaplan-Meier Difference Between Groups

Source: R/km_wlr_calculations_helpers.R
KM_diff.Rd

Calculates the difference in Kaplan-Meier curves between two groups, with confidence intervals and optional resampling-based simultaneous confidence bands.

Usage

KM_diff(
  df,
  tte.name = "tte",
  event.name = "event",
  treat.name = "treat",
  weight.name = NULL,
  at_points = sort(df[[tte.name]]),
  alpha = 0.05,
  seedstart = 8316951,
  draws = 0,
  risk.points = NULL,
  draws.band = 0,
  tau.seq = 0.25,
  qtau = 0.025,
  show_resamples = TRUE,
  modify_tau = FALSE
)

Arguments

df

Data frame containing survival data.

tte.name

Character; name of time-to-event variable in df.

event.name

Character; name of event indicator variable in df (1=event, 0=censored).

treat.name

Character; name of treatment group variable in df (0=control, 1=treatment).

weight.name

Character or NULL; name of weights variable in df.

at_points

Numeric vector; time points for calculation. Default: sorted unique event times.

alpha

Numeric; significance level for confidence intervals. Default: 0.05.

seedstart

Integer; random seed for reproducibility. Default: 8316951.

draws

Integer; number of draws for pointwise variance estimation. Default: 0.

risk.points

Numeric vector; time points for risk table display.

draws.band

Integer; number of draws for simultaneous confidence bands. Default: 0.

tau.seq

Numeric; step size for tau sequence when modify_tau=TRUE. Default: 0.25.

qtau

Numeric; quantile for tau range restriction. Default: 0.025.

show_resamples

Logical; whether to plot resampled curves. Default: TRUE.

modify_tau

Logical; whether to restrict time range for simultaneous bands. Default: FALSE.

Value

A list containing:

at_points

Time points used in calculations

surv0, surv1

Survival estimates for control and treatment groups

sig2_surv0, sig2_surv1

Variance estimates for survival curves

dhat

Survival difference (S1 - S0) at each time point

sig2_dhat

Variance of survival difference

lower, upper

Pointwise confidence limits (1 - alpha/2)

sb_lower, sb_upper

Simultaneous band limits (if draws.band > 0)

c_alpha_band

Critical value for simultaneous band (if draws.band > 0)

dhat_star

Matrix of resampled differences (if draws.band > 0)

Zdhat_star

Standardized resampled differences (if draws.band > 0)

Details

This function computes the difference in Kaplan-Meier survival curves, delta(t) = S_1(t) - S_0(t),

along with variance estimates and confidence intervals.

When draws.band > 0, simultaneous confidence bands are constructed using the supremum distribution of the standardized difference process. These bands maintain the specified coverage probability across all time points simultaneously.

The variance is estimated using Greenwood's formula for unweighted data, or resampling-based methods when draws > 0.

Note

Treatment must be coded as 0=control, 1=experimental. Event must be binary (0/1).

Confidence Intervals vs Bands

  • Pointwise CIs (lower, upper): Cover the true difference at each time point with probability 1-alpha

  • Simultaneous bands (sb_lower, sb_upper): Cover the entire difference curve with probability 1-alpha

See also

df_counting for full survival analysis plotKM.band_subgroups for visualization cumulative_rmst_bands for RMST analysis

Other survival_analysis: cox_rhogamma(), df_counting(), wt.rg.S()

Examples

library(survival)
str(veteran)
#> 'data.frame':	137 obs. of  8 variables:
#>  $ trt     : num  1 1 1 1 1 1 1 1 1 1 ...
#>  $ celltype: Factor w/ 4 levels "squamous","smallcell",..: 1 1 1 1 1 1 1 1 1 1 ...
#>  $ time    : num  72 411 228 126 118 10 82 110 314 100 ...
#>  $ status  : num  1 1 1 1 1 1 1 1 1 0 ...
#>  $ karno   : num  60 70 60 60 70 20 40 80 50 70 ...
#>  $ diagtime: num  7 5 3 9 11 5 10 29 18 6 ...
#>  $ age     : num  69 64 38 63 65 49 69 68 43 70 ...
#>  $ prior   : num  0 10 0 10 10 0 10 0 0 0 ...
veteran$treat <- as.numeric(veteran$trt) - 1

# Basic KM difference
result <- KM_diff(
  df = veteran,
  tte.name = "time",
  event.name = "status",
  treat.name = "treat"
)

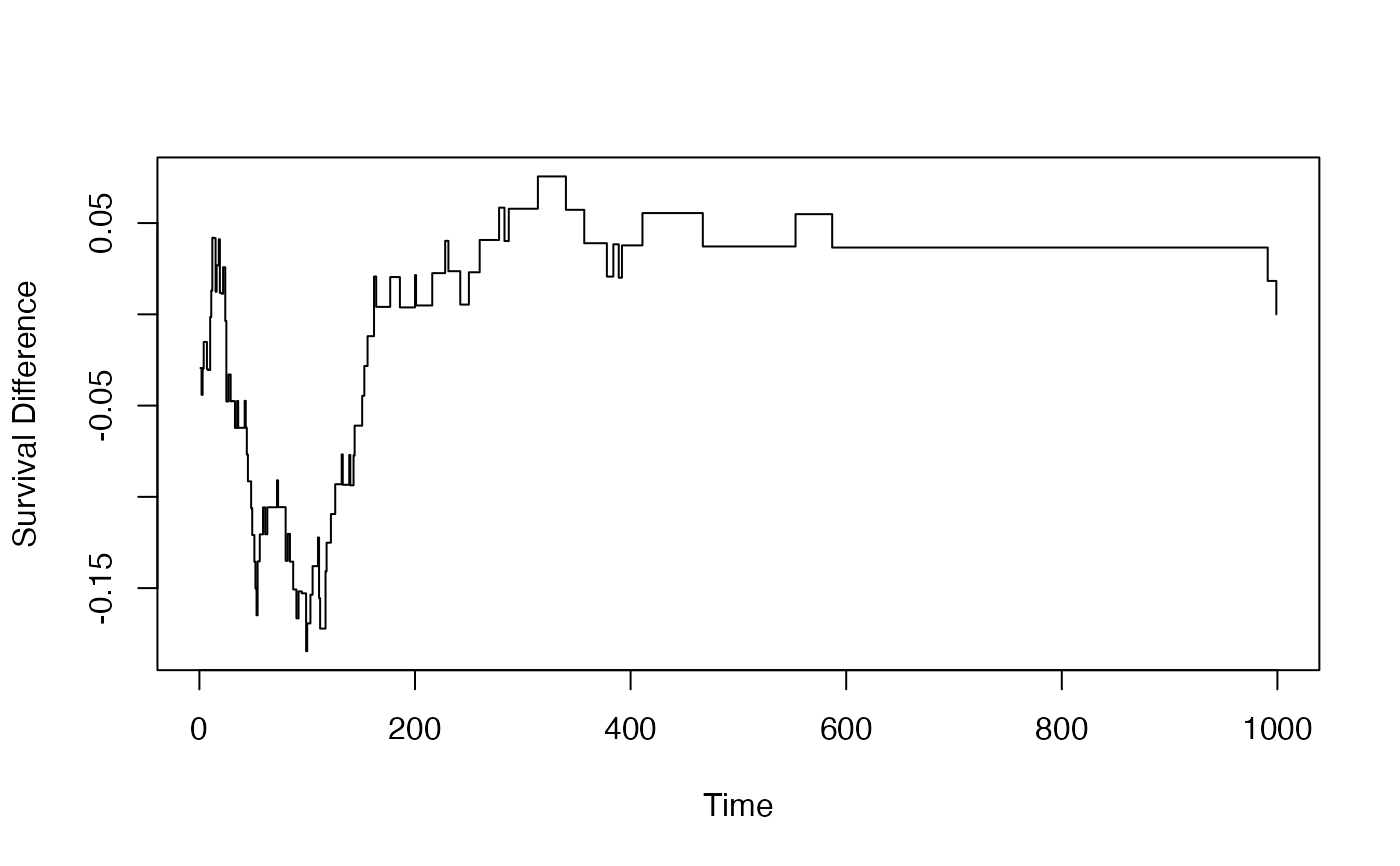

# Plot the difference
plot(result$at_points, result$dhat, type = "s",
     xlab = "Time", ylab = "Survival Difference")

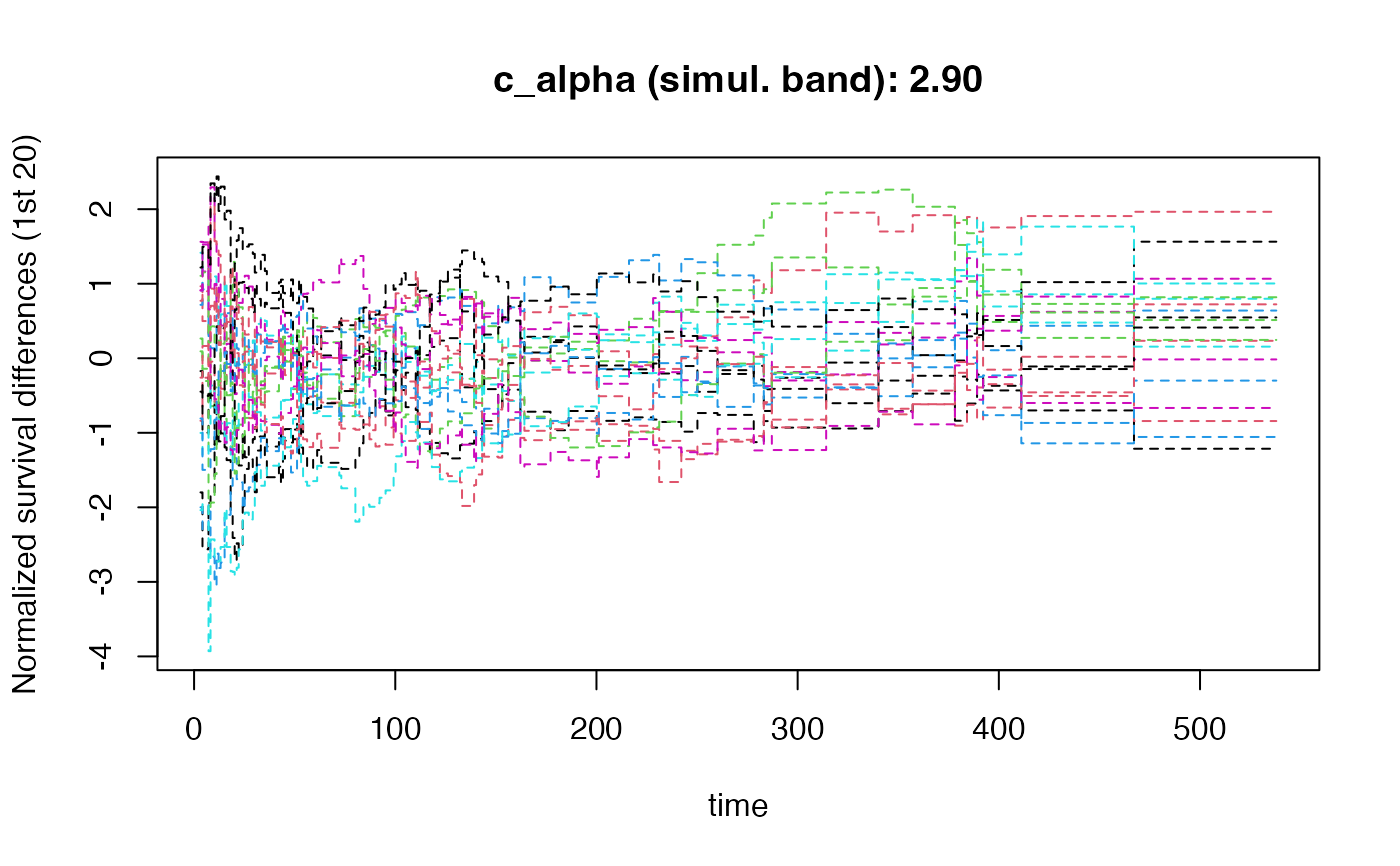

# With simultaneous confidence bands
result_band <- KM_diff(
  df = veteran,
  tte.name = "time",
  event.name = "status",
  treat.name = "treat",
  draws.band = 1000,
  modify_tau = TRUE
)
